Models & Specs


mainimage







Manufacturer Approval Code /
Product Approval Code		 2213 / 07-667

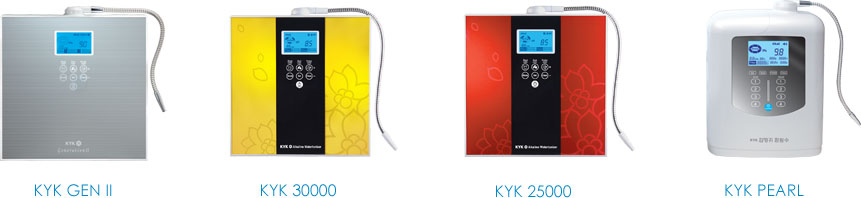

Types
Single-Filter Ionizer KYK PEARL
Dual-Filter Ionizers KYK 25000, KYK 30000, KYK GEN II
Size
KYK PEARL 280W x 340H x 150D (mm)
KYK 25000 / 30000 / KYK GEN II 340W x 340H x 150D (mm)
Weight KYK PEARL 6 kg; KYK 25000 6 kg; KYK 30000 7 kg; KYK GEN II 8 kg;
Installation Standing or wall-mounted
Direct connection to tap or undersink connection
LCD Display Displays pH and ORP levels (7 colors), water flow rate per minute, self-clean, sound indicator, filter life for 1st filter and 2nd filter, auto-diagnosis codes
Controlling Method Touch Sensor
pH Range Adjustable from 3.8 to 10.2 pH
Preset levels: 4.0 / 4.5 / 5.0 / 5.5 / 7.0 / 8.5 / 9.0 / 9.5 / 10.0
ORP Range Adjustable from +790 to -460
Electrolysis Electrolysis Method Continuous electrolysis with a flow sensor
Electrolysis Ability 4 preset levels of alkaline water, 4 preset levels of acidic water, one preset level of neutral pH filtered water
Electrolysis Capacity
KYK PEARL Alkaline water 2.0 LPM / Acidic water 1.6 LPM
KYK 25000 Alkaline water 2.0 LPM / Acidic water 1.6 LPM
KYK 30000 Alkaline water 2.5 LPM / Acidic water 2.0 LPM
KYK GEN II Alkaline water 2.5 LPM / Acidic water 2.0 LPM


Electrolysis Cell
KYK PEARL 5 platinized titanium plates
KYK 25000 5 platinized titanium plates
KYK 30000 7 platinized titanium plates
KYK GEN II 7 platinized titanium plates


Electrolysis Power
KYK PEARL SMPS @ 70 watts
KYK 25000 SMPS @ 80 watts
KYK 30000 SMPS @ 80 watts
KYK GEN II SMPS @ 250 watts


Electrode Sheet Wash Automatic washing (controlled by mycom)
Filter Filter Life Estimate KYK PEARL
Single Filter: can handle up to 3,500 litresKYK 25000 / 30000 / KYK GEN II
1st Filter: can handle up to 6,000 litres
2nd Filter: can handle up to 9,000 litres
Filtering Material
(Made in Korea)		 1st filter/single filter: Antibacteria filter, Zeomic, Noxious Odor Calcium, Active Carbon (with silver added), Sediment filter
2nd filter: Antibacteria filter, Granular Activated Carbon, Active Carbon (with silver added)
Message to indicate Filter Change Alert message on LCD screen when filter life indicator reaches 70L. If the taste and smell of water is not normal, you should change the filter anyway
Available Temperature 5˚C ~ 30˚C or 41˚F ~ 86˚F
Available Water Pressure 1.5 ~ 3.0 kgf/cm2
Power Source Protector Glass Tube Fuse
Over-current Detector Automatically stops the output of electrolytic cells
Over-Temperature Protector The temperature detector circuit installed inside the SMPS automatically stops the device
